Описание
包装信息
裸机尺寸:17.5X14X7.5CM
带盒子尺寸:23X15X8.5CM
外箱：48X31X44CM
净重：0.75KG
毛重：0.8KG
箱台：20台/箱
箱重：17KG
为了您能更快速地了解本产品，我们有中文版详情页供您参照WLSH-20B中文版，是同款产品哦！（点击链接进入）
https://detail.1688.com/offer/538057517827.html?spm=a26286.8251493.description.2.14f025b2bhQpp2
注：如需开发票请联系客服补税点

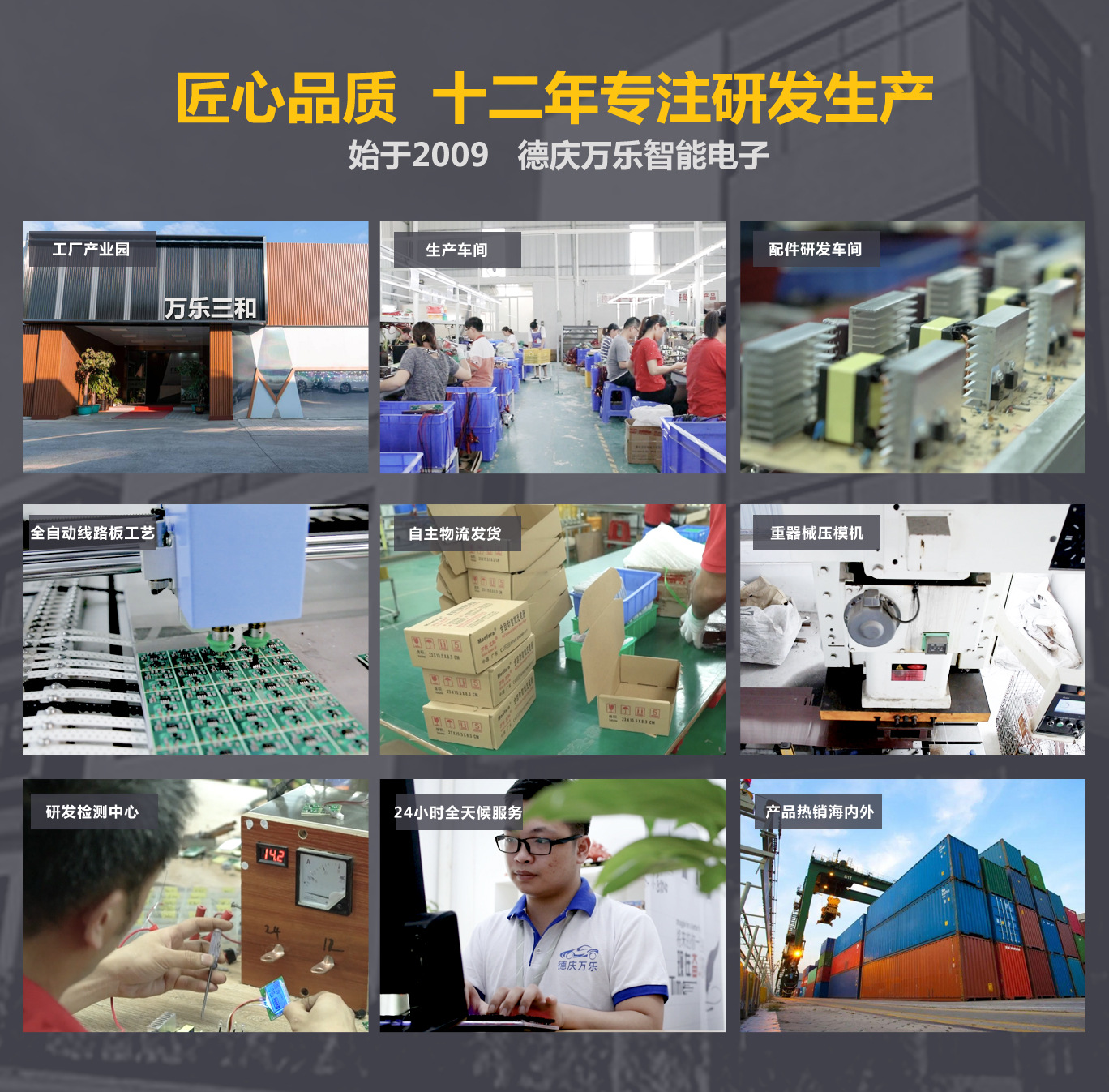

We are dedicated to 1688 at home and abroad
Direct sales of factories attract investment
Product support: wholesale, retail, OEM ODM LOGO OEM customization,etc
Sufficient inventory, provide one-to-one service, please contact customer service
Our charger series has
Current：6A, 8A, 10A, 12A, 18A, 23A, 30A, 50A
Power：180w,220W,400W,600W,800W
Welcome to inquire

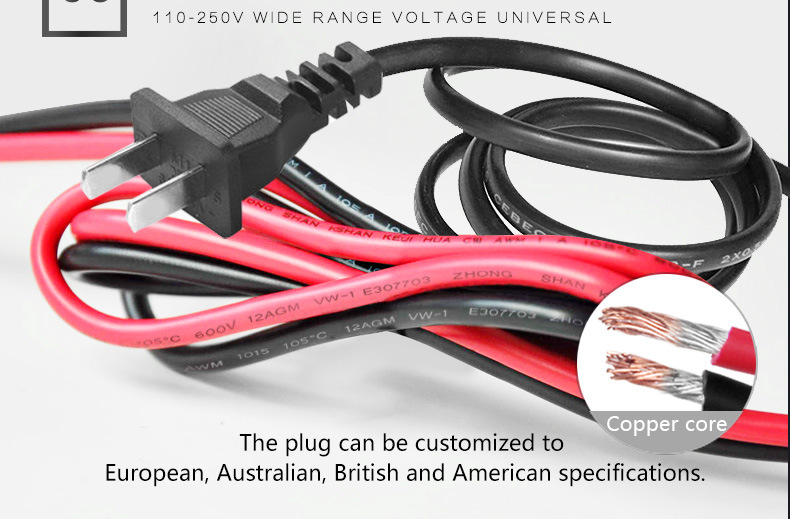

plug size
110V ~ 250Vwide voltage, universal in the world
110V Taiwan, Japan, Korea
110V~ 130V 30 countries including the United States, Canada, Cuba, Mexico, etc
200V Hong Kong, China
220V Chinese mainland, Germany, Singapore, Italy and 120 other countries
220 ~ 230V Sweden, Russia

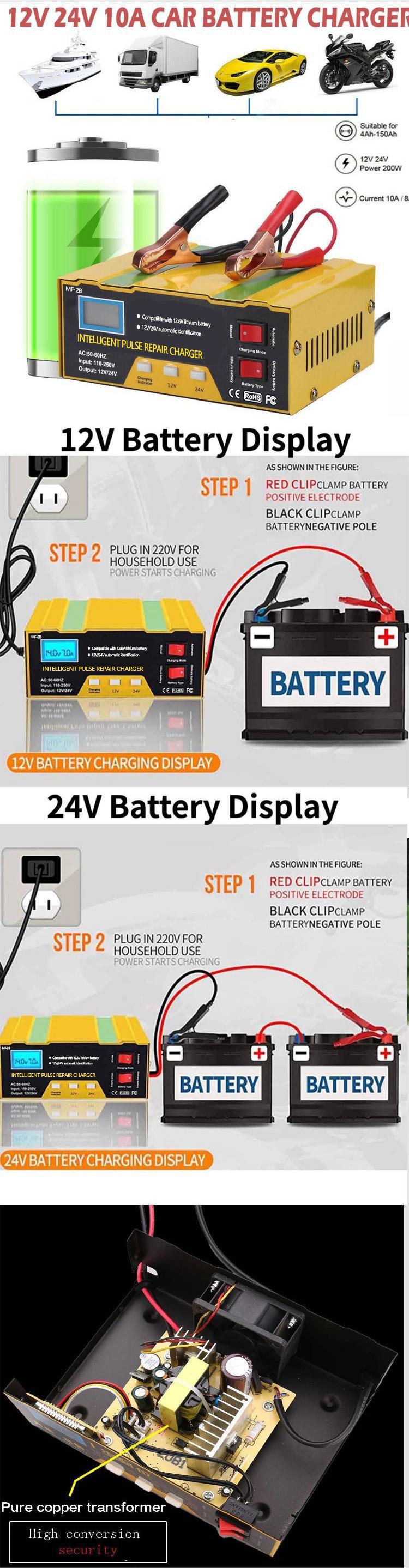

The product is suitable for
It’s compatible with all kinds of 12V /24V lead-acid battery, water battery, maintenance-free battery, dry battery charging. etc. (VELA BATTERY ,GEL BATTERY,OPZN BATTERY）
And 12.6V lithum battery
apply

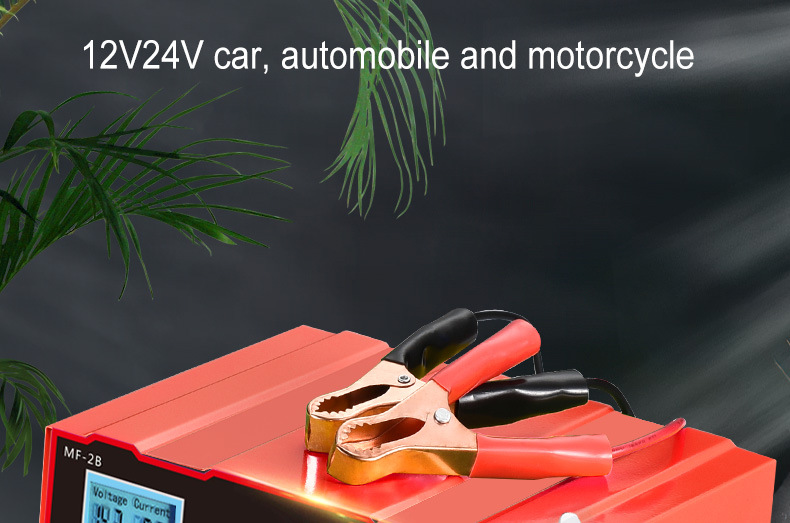

Cars, SUVs, motorcycles, electric vehicles, small trucks, tractors and other types of vehicles
characteristic

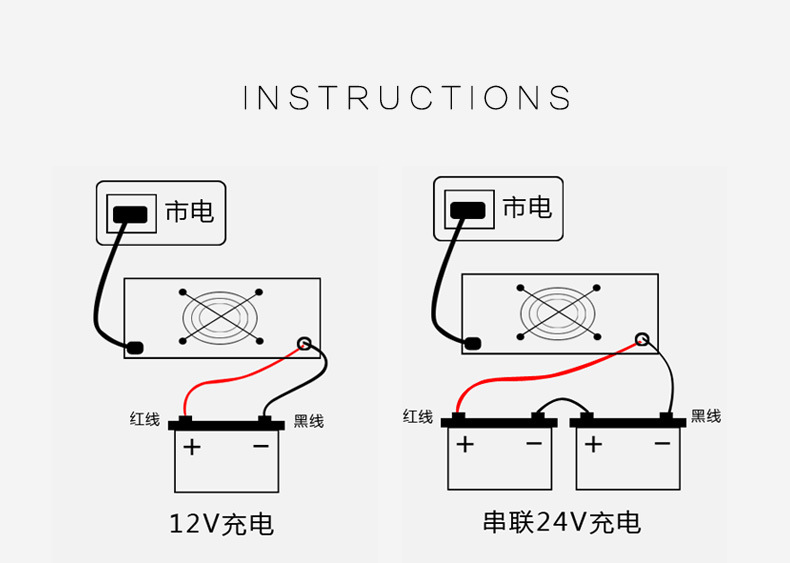

1.12v/24v universal automatic identification
2. Compatible with 12.6V polymer lithium battery
3. Full charge automatically stops output current

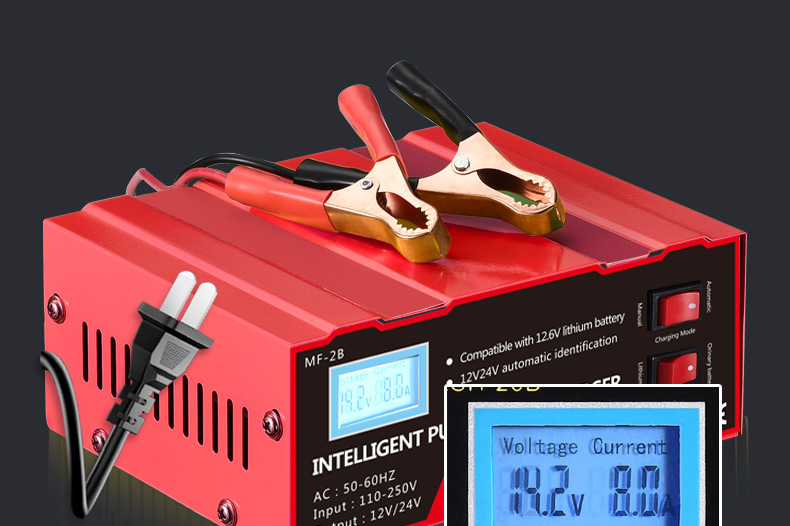

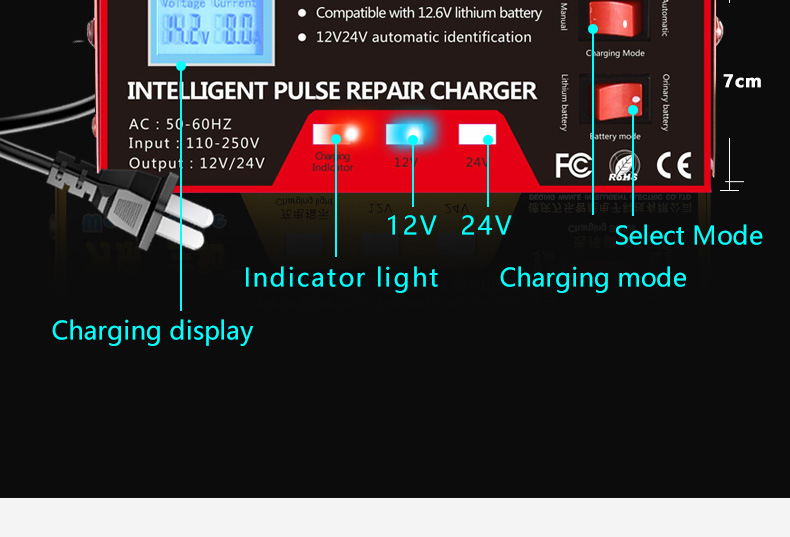

4. Digital display: current, voltage, power and charging state in different stages

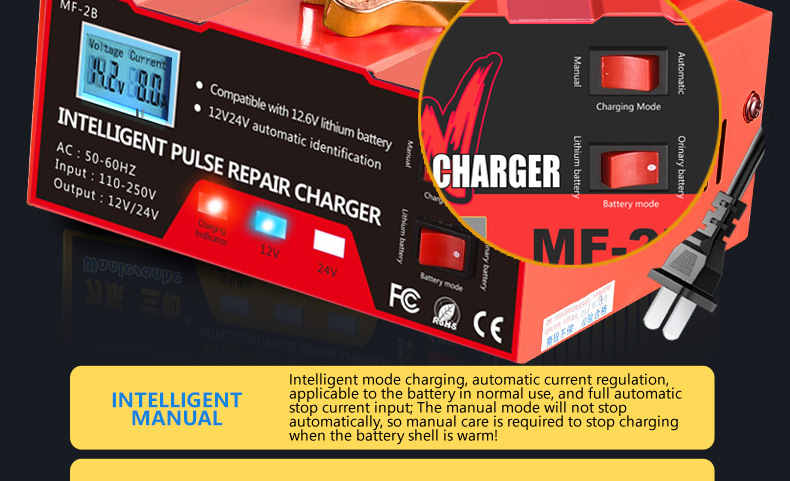

5. The current can be adjusted manually, automatic and manual charging mode, more reliable and safe

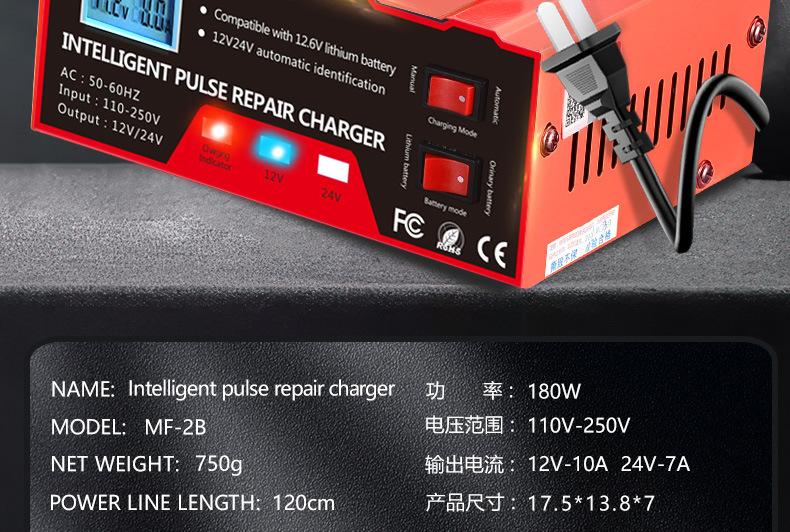

Specifications

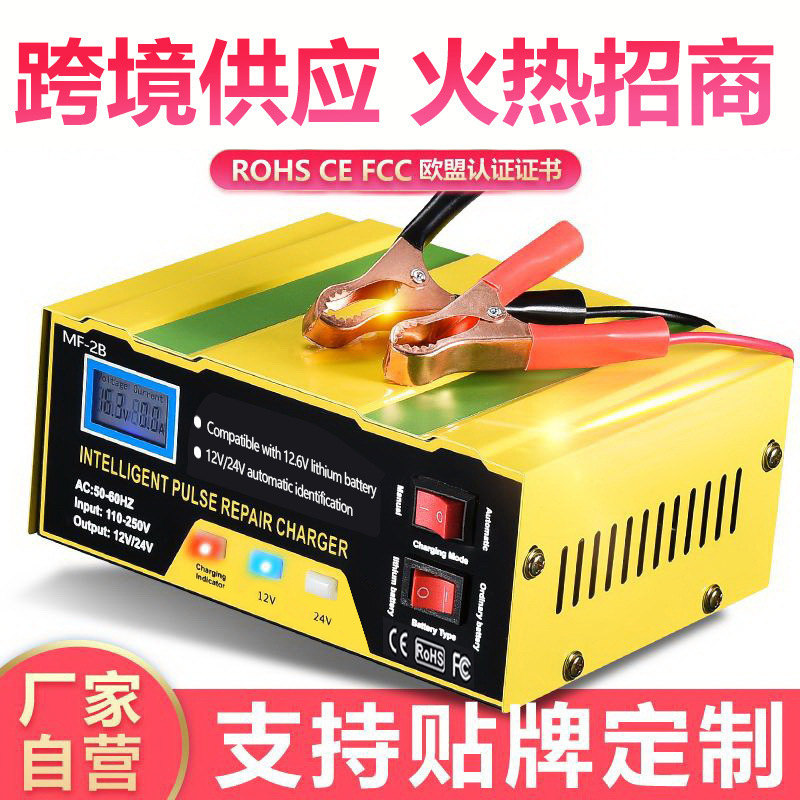

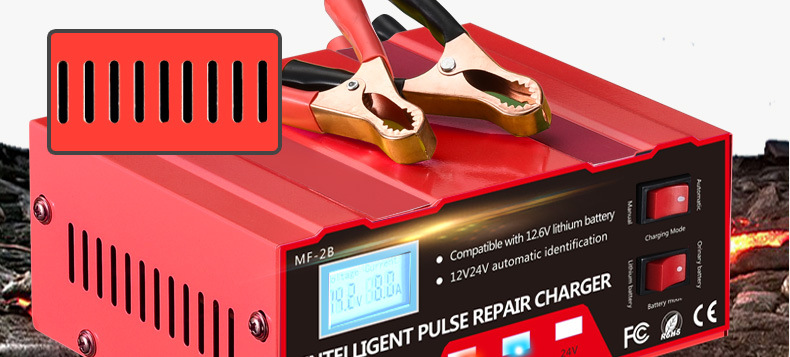

Model：MF-2b / WLSH-20b
Input voltage：110V ~ 250V Power：180W
Output voltage：12V / 24V Frequency：50-60 Hz
Working current：12v-10a/24v-7a working temperature：— 30 ℃ to + 50 ℃
Packaging information

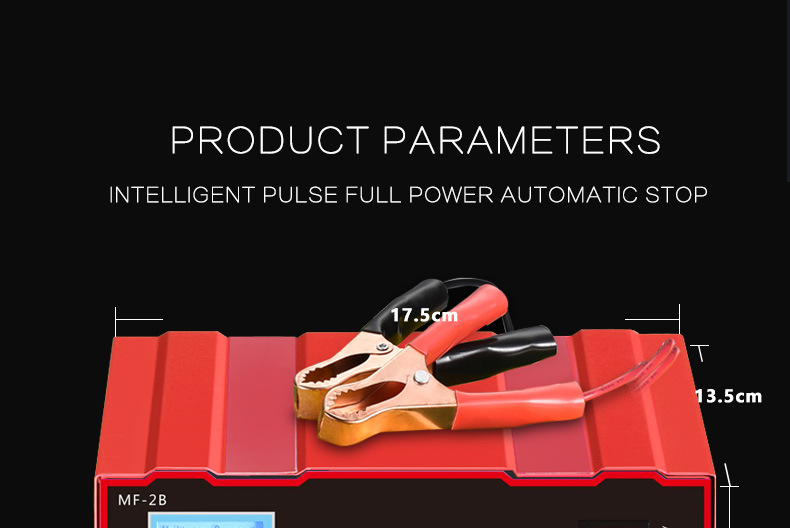

Product size：175*140*7.5mm
Net weight：0.75kg Gross weight：0.8kg
Packing quantity：20Dais Carton siza：48x31x44cm
Packing Weight：17kg Plug：Optional

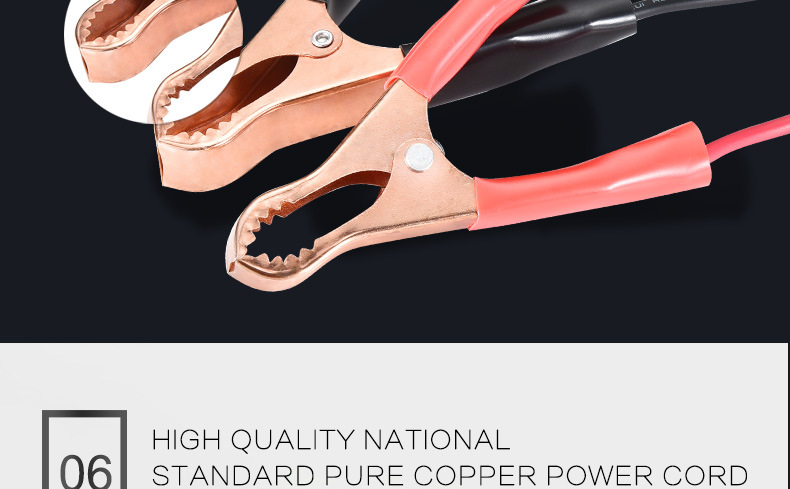

input line：120cm output line：60cm

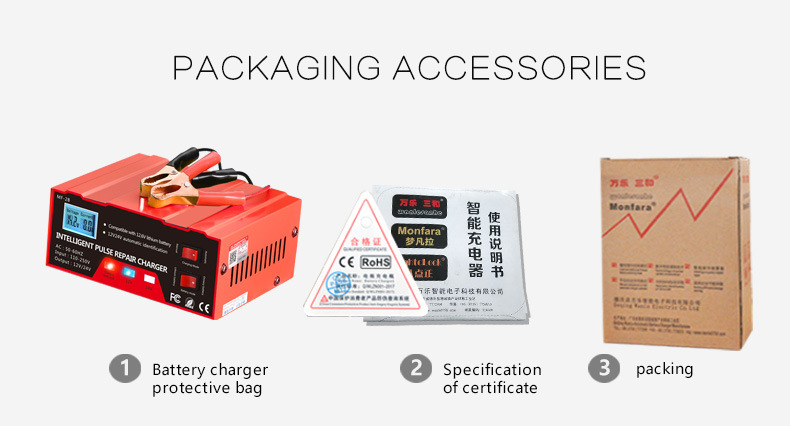

Packing list
1 * charger
1 * user manual (English)
Charging time reference
Battery（AH） Charging time（H） Battery（AH） Charging time（H）
3AH 0.5 6AH 1-2
9AH 1-3 36AH 7-8
45AH 7-10 60AH 9-14
80AH 10-15 105AH 15-22
120AH 19-25 150AH 20-28
Charging mode
Four stage charging , protect the battery ,non-overcharging
1.Adaptive electricity charging
2. Charging at constant voltage
3. Full charge soon&conduct floating charge
4. Microcurrent supply/full charge

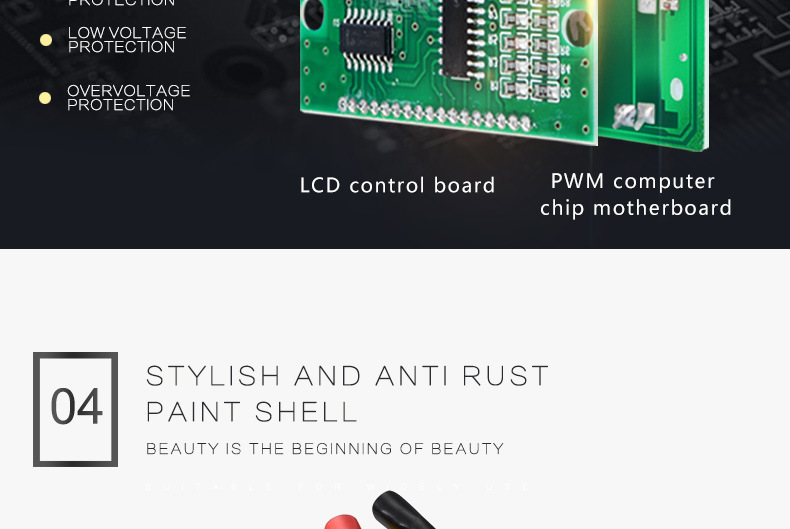

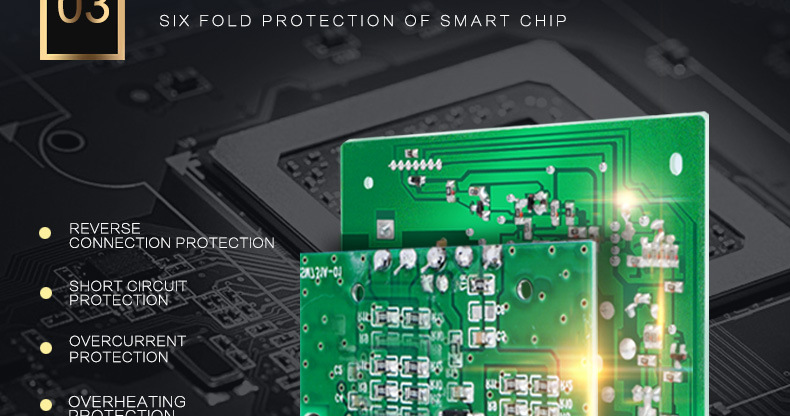

SIX Protections ,Ensure safe charging
hort Circuit protecton
Polarity error protecton
Overheating protection
Over current protection
low-voltage protection
Over voltage protection
Note

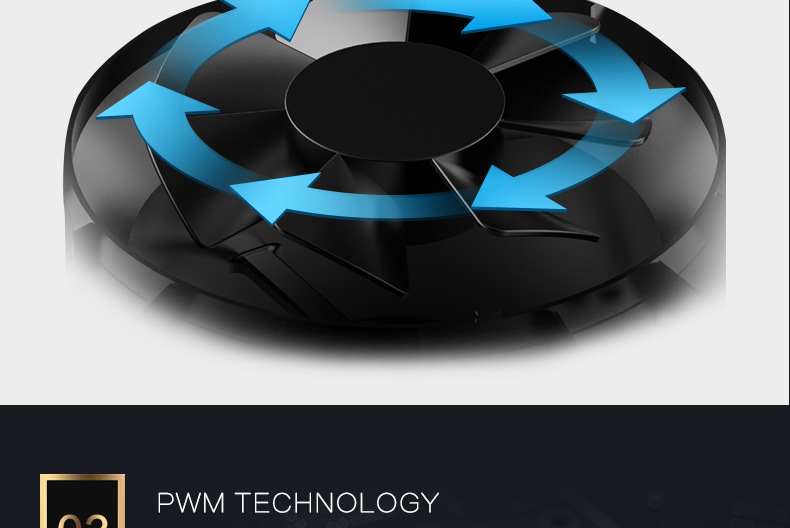

1. Please do not block cooling fan or use the charger while cooling fan is stopped
2. Please prevent the charger from rain or water to avoid damage
